AxialControl: Home Automation Server (Formerly InControl)

Postby yokel22 » Fri Dec 30, 2016 6:13 am

This is a plugin for AxialControl Home Automation Server http://www.axialcontrol.com/. Right now it's just basic one way communication, but i plan on adding events in the next version. I've tested things pretty well but only on my system. If something isn't working properly, LMK.
Attachments
AxialControlHA.egplugin
AxialControlHA v1.0
(11.19 KiB) Downloaded 15 times
Last edited by yokel22 on Wed Feb 01, 2017 12:23 am, edited 1 time in total.
yokel22
Experienced User

Posts: 89
Joined: Thu Feb 05, 2015 5:56 pm
Location: U.S. - Kansas city

Re: AxialControl: Home Automation Server (Formerly InControl

Postby yokel22 » Sun Jan 22, 2017 1:26 am

Added Event Generation, Calling it v1.0. I plan on switching things over to a websocket connection when i can figure out the commands. But for the time being it's setup with a polling thread. This is optional and the polling time is configurable. It will generate event's in this format. "AxialControlHA.deviceName({'type': xxx, 'deviceID': 'xxx', 'value': 'xxx'}). I'm open to suggestion on the formatting of this but if you want to get the value for the event it can be parsed out like this:

deviceName:
Code: Select all
eg.event.suffix

deviceValue:
Code: Select all
eg.event.payload['value']

deviceType:
Code: Select all
eg.event.payload['type']

deviceID:
Code: Select all
eg.event.payload['deviceID']

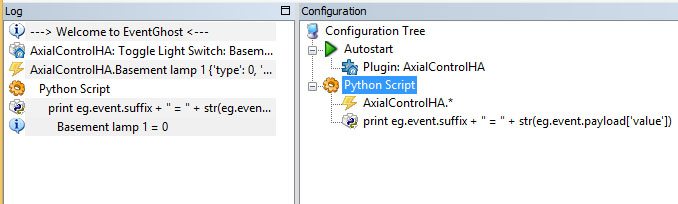

Or you can do something like this in the screenshot(copy/paste this into your eg.tree):
Code: Select all
<?xml version="1.0" encoding="UTF-8" ?>
<EventGhost Version="1722">
    <Macro Name="Python Script" Expanded="True">
        <Event Name="AxialControlHA.*" />
        <Action>
            EventGhost.PythonCommand(u'print eg.event.suffix + " = " + str(eg.event.payload[\'value\'])')
        </Action>
    </Macro>
</EventGhost>
Attachments
Event usage Example
Last edited by yokel22 on Wed Feb 01, 2017 12:23 am, edited 2 times in total.
yokel22
Experienced User

Posts: 89
Joined: Thu Feb 05, 2015 5:56 pm
Location: U.S. - Kansas city

Re: AxialControl: Home Automation Server (Formerly InControl

Postby yokel22 » Fri Jan 27, 2017 9:47 pm

This is a simple web app that uses this plugin and the webserver plugin. It still has a few small bugs to fix but is in pretty good working order if anyone feels like playing around with it. There are a few screenshots attached at the bottom of this post.

Step 1:
You will need version 1.0 or higher installed of the AxialControlHA plugin.

Step 2:
Open the attached eventghost tree.

Step 3:
Configure the AxialControl plugin with your server credentials. Also enable Event polling, i usually set my polling time to 5 seconds.

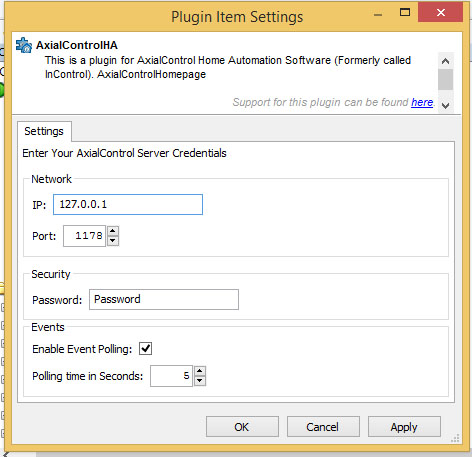

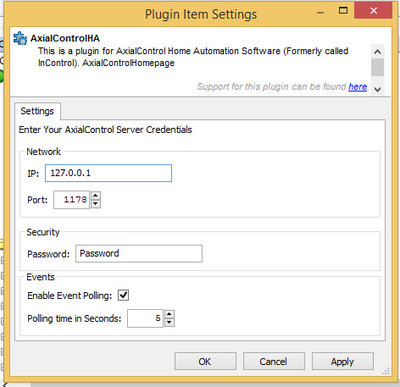

AxialControlHA config

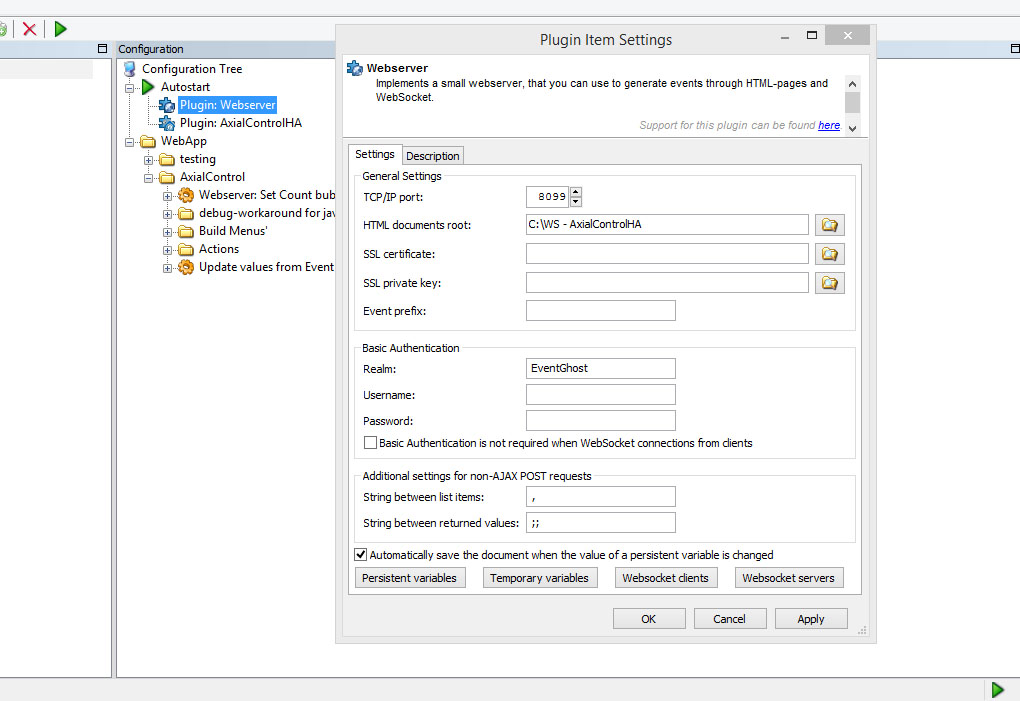

Step 4: Configure the Webserver plugin to point to the supplied html folder. Also set your prefferred port to run the webserver off of. (Note: if you experience any errors with the webserver plugin. Update to the newest version here: http://www.eventghost.net/forum/viewtopic.php?f=9&t=1663)
Webserver Config


Step 5: Load the webpage in your prefferred web browser(Your PC's ip that runs EG and the port set in the webserver plugin. Example: 127.0.0.1:8099). You can run this in fullscreen on chrome by saving the link to desktop and choosing open in window.

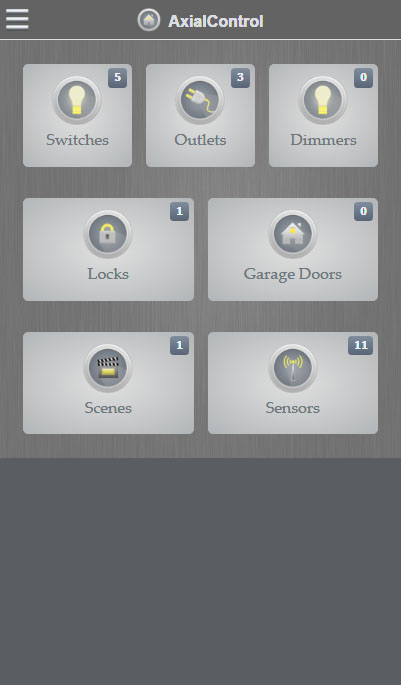

Axial home

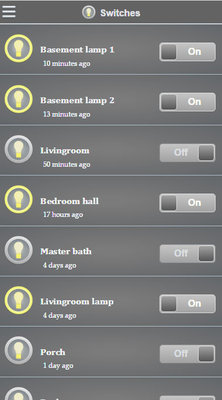

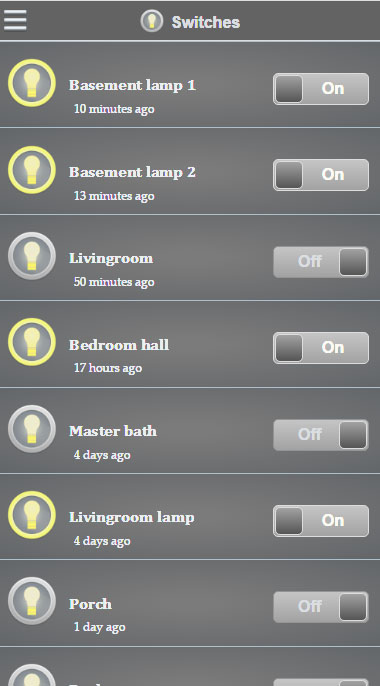

Axial switches

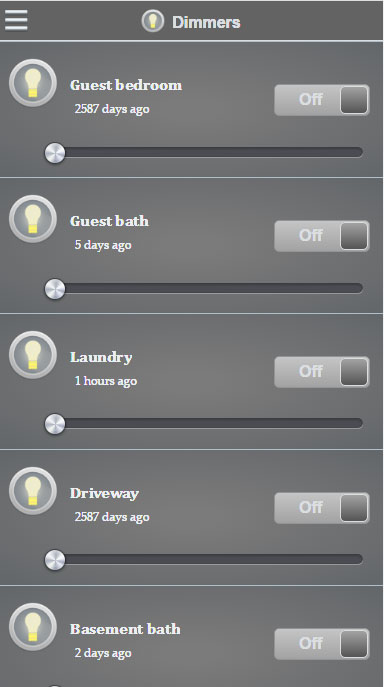

Axial dimmers

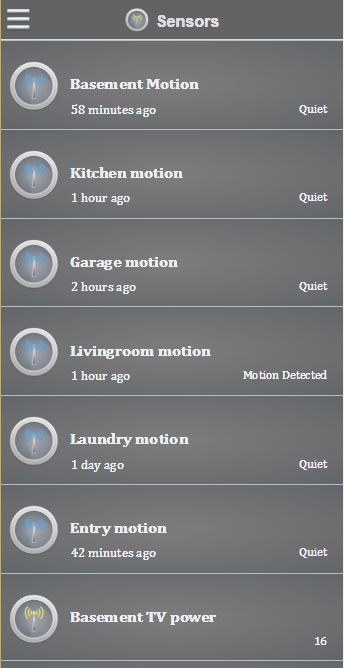

Axial Sensors
Attachments
AxialControlHA WebApp.zip
AxialControlHA Web App HTML files
(2.99 MiB) Downloaded 14 times
AxialControlHAwebTree.xml
AxialControlHA Web App EventGhost Tree xml
(28.98 KiB) Downloaded 16 times
yokel22
Experienced User

Posts: 89
Joined: Thu Feb 05, 2015 5:56 pm
Location: U.S. - Kansas city
