RFXtrx

[alonmalka]

Great!! Now it works!!
Thanks alot.
I will keep you up to date if there is any other ussue with the two Rfxtrx Config

BR
Alon

[krambriw]

New version released in the first post

- Made event prefix configurable (to support multiple RFXtrx devices)
- Added action to dim AC devices up/down in defined step size
- Saving the dim level persistent

[krambriw]

New version released in the first post

- supporting firmware up to ver 73

[krambriw]

New version released in the first post

- supporting firmware up to ver 74

[Jakov]

I have purchased a couple of Livolo switches, and they work as expected ( no just ON command) , except that the dimmer switch doesnt respond to dim+ and dim- commands. Toggle on/off and all-off work.
The dim commands don't work form rfxmng as well.

Has anyone else this problem?

[mbaan76]

Hi,

I'm using your plugin for a long time and i'm very happy with it. I have a questions about about the Oregon WGR800 Wind speed and direction meter. If i receive the signal in the RFXCOM manager i see speed values the following format: 1,9 (with one decimal). When i receive the signal in eventghost there are no decimals. just showing 1, or 2 or 3 etc etc. I'm writing this signal in my Msql database and i like to store it with one decimal.

Is this something i can change any ware, or is this just the plugin limitation?

Kind regards,

Marco

[krambriw]

Marco,
You have found a bug, I made a mistake in the decoding/calculation...

I am curretly working on a new version I will release beginning next week and I will include a fix for this error as well.

Best regards & thanks, Walter

[krambriw]

@Marco,
I think I fixed it already, could you verify if it is ok?

(Just replace with the file below & restart EG)

BR

__init__.py

(502.85 KiB) Downloaded 185 times

[mbaan76]

Dear Walter,

It works!

I now see the decimal. Thank you very much for this fast service.

Marco

[krambriw]

New version released in the first post

[krambriw]

Added action to support RFY (SOMFY Compatibel) Venetian blinds, new version in first post

[krambriw]

New version released in first post. Long time wanted support for potential free 12V and 220V relays added, Lighting5 ÔÇô Aoke relay.

The Aoke 12V DC - 315MHz or 433.92MHz 1 channel relay is available at http://www.aliexpress.com store No.110758.

Indicate clearly the required frequency when ordering!

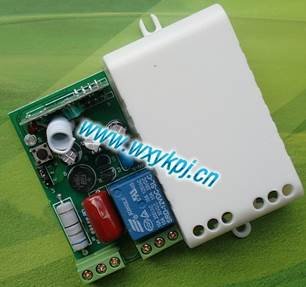

The 1 channel learning relays can be used, see the picture below.


For example, for 1 relay order:
http://www.aliexpress.com/store/product ... 34863.html

or for 6 relays:
http://www.aliexpress.com/store/product ... 06574.html

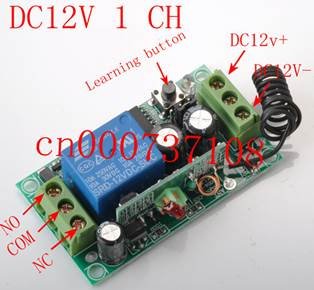

The jumper next to the learning button defines to operating mode:
Open = momentary
1-2 = toggle mode
2-3 = on/off mode (to be used with the RFXtrx)

A 220V version is also available:


For orders:
http://www.aliexpress.com/store/product ... 68101.html

[husa550]

Hi

Im using the RFXtrx plugin to switch on/off several Nexa switches and that work perfect!

Now i got a temp sensor that the RFXtrx detects and recieve data from.
How do i send this data to my comandfusion/iviewer config?

This is how it looks in EG:

RFXtrx.Type: Rubicson id: 513 ' temperature: +17.4 deg C humidity: 77 %RH status: wet signal: 6 battery: 9'

It would be nice to send this data to my iPad and see it in iViewer!

I use the Commandfusion plugin to control XBMC and other stuff on a cumputer.

Thank's!

[krambriw]

Hello, it should not be too difficult, you can use the CommandFusion action 'Serial Change'

A sample python script that you can put in a macro that gets triggered by the RFXtrx (Rubicson) event looks like the below. You have to edit and insert the correct 'join' number in the SerialChange command.

BR Walter

Code: Select all

pload = eg.event.payload
m = pload.split(' ')
temperature = str(m[2])
#print temperature
try:
    eg.plugins.CommandFusion.SerialChange(1, temperature)
except:
    print 'Detected problems sending to CommandFusion'

[husa550]

Hi Krambriw!

Thank's for fast support

I tried you script sample but get this error:

RFXtrx.Type: Rubicson id: 513 ' temperature: +28.3 deg C humidity: 47 %RH status: comfort signal: 7 battery: 9'
Python Script
Python Script
error in action "python script"
Traceback (most recent call last) (1669):
TypeError: 'NoneType' object is not callable
CommandFusion Plugin: Serial Change: 500
CommandFusion Message could not be sent: s500=0

This comes when the macro get the trigger from my temp sensor.

When i start Eventghost i get this error:

Traceback (most recent call last) (1669):
File "C:\Program Files (x86)\EventGhost\EventGhost\eg\Classes\ActionThread.py", line 33, in StartSession
pluginInfo.instance.__start__()
File "C:\Program Files (x86)\EventGhost\EventGhost\plugins\System\__init__.py", line 271, in __start__
import VistaVolEvents as vistaVolumeDll
ImportError: No module named VistaVolEvents
Error compiling script.
Traceback (most recent call last) (1669):
File "C:\Program Files (x86)\EventGhost\EventGhost\eg\Classes\ActionItem.py", line 121, in SetArguments
self.compiled = self.executable.Compile(*args)
File "C:\Program Files (x86)\EventGhost\EventGhost\plugins\EventGhost\PythonScript.py", line 71, in __init__
self.PrintTraceback()
File "C:\Program Files (x86)\EventGhost\EventGhost\plugins\EventGhost\PythonScript.py", line 97, in PrintTraceback
treeItem.PrintError("Traceback (most recent call last):")
AttributeError: 'NoneType' object has no attribute 'PrintError'
Error compiling script.
Traceback (most recent call last) (1669):
File "C:\Program Files (x86)\EventGhost\EventGhost\eg\Classes\ActionItem.py", line 121, in SetArguments
self.compiled = self.executable.Compile(*args)
File "C:\Program Files (x86)\EventGhost\EventGhost\plugins\EventGhost\PythonScript.py", line 71, in __init__
self.PrintTraceback()
File "C:\Program Files (x86)\EventGhost\EventGhost\plugins\EventGhost\PythonScript.py", line 97, in PrintTraceback
treeItem.PrintError("Traceback (most recent call last):")
AttributeError: 'NoneType' object has no attribute 'PrintError'

Could that be the source to the other error message?
